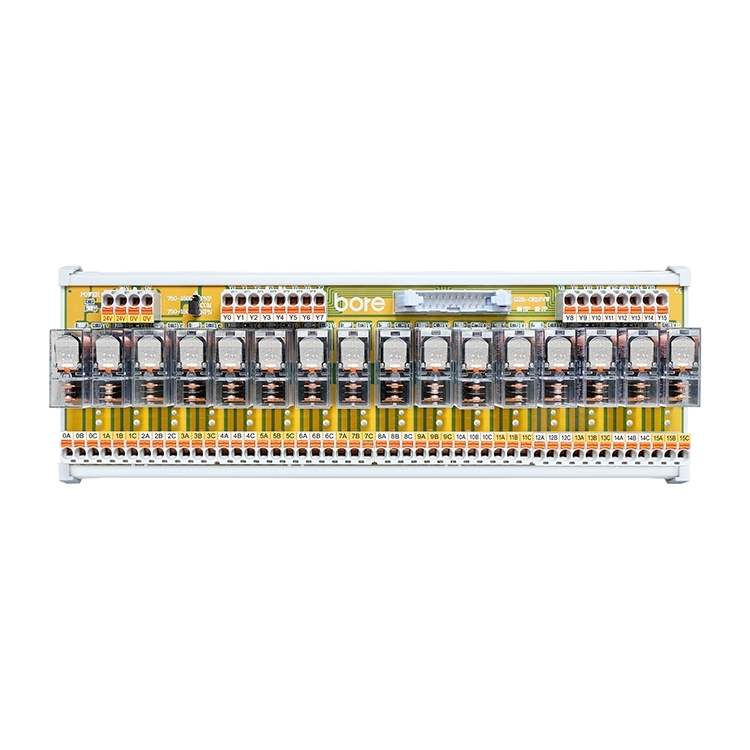

OMRON RELAY
G2R-OR16VMWA
- 24VDC 16-point OMRON relay module
- Uses WAGO 5.0mm Push-in terminal for easy wiring
- Supports WAGO PLC brands
- NPN / PNP compatible
- Plug-in relay, easy to replace and maintain
- DIN-35mm rail mounting design
- Built-in LED power and operation dual indicator lights
- For 3D files, please contact the sales representative
PLEASE SELECT PRODUCT ITEM NO.
- The control side and the controlled side both use the latest Push-in terminal wiring design, simplifying wiring for easy use.
- Uses Omron relays manufactured by the original factory, paired with gold-plated bases for better anti-oxidation, better electrical conductivity, and longer lifespan.
- Pluggable relays, each relay is independent, with a base, compatible with relays from other brands for easy replacement and maintenance.
- Excellent safety design, with a dielectric strength of up to 5000V between the coil and contacts, and surge resistance of 10000V.
- Used for IO expansion of input and output contacts in industrial control, can connect to PLCs to expand the PLC's input and output ports.
- Input side offers two wiring methods: terminal block and IDC spade connector, making wiring easy, saving time, effort, and wiring.
- Uses Omron G2R-1-E-DC24 relay with a large contact current rating of up to 16A.
- Exclusively for WAGO PLC controllers.
- Industrial-grade design, anti-interference, and high future expandability.
- Can be quickly installed on standard 35mm DIN rails.
- Widely used in various manufacturing industries, machine tools, mechanical industries, and industrial automation fields.
| Specification | Data |
|---|---|
| Specifications | |
| Types of Relay | Power relay |
| Product Name | 16 Channels OMRON Relay Module |
| Correspondence with PLC/CNC Brands | WAGO |
| Subtable Purpose | control device output |
| Polarity | NPN / PNP |
| Numbers of Channel | 16 |

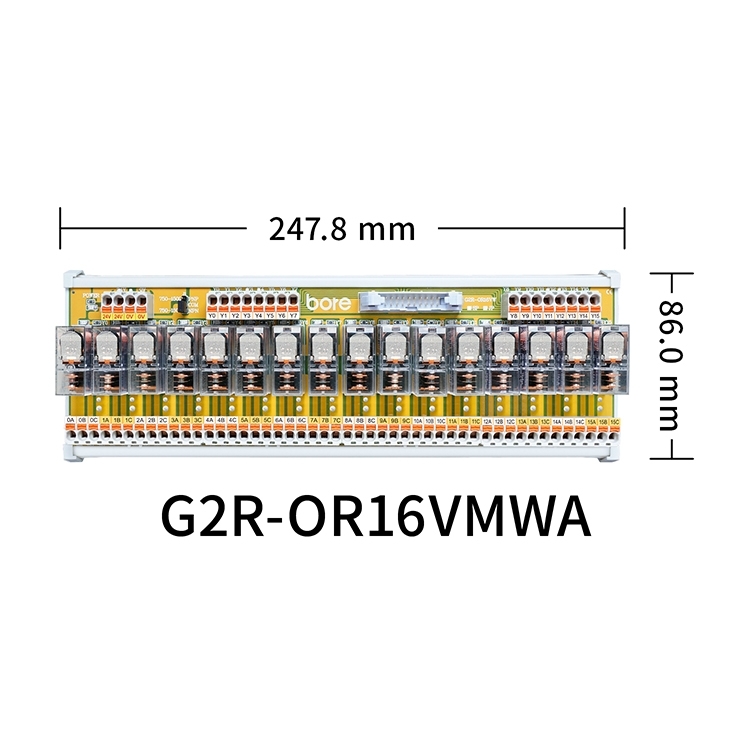

| Dimensions | L247.8 X W86.0 X H62.0 mm |
| Brands of Relay | OMRON |
| Item No. of Relay | G2R-1-E-DC24 |
| Contact Type | 1c (SPDT) |
| Poles | 1 pole |
| Functions of Relay | high-capacity |
| Protection of Relay | lead-free solderable |
| Brands of Terminal Block | WAGO |
| Types of Terminal Block | 5.0mm Push-in Terminal Block |
| Applicable Wire Diameter | 12~28 AWG |
| Types of Connector | 20-PIN IDC/MIL Connector |
| Contact Protection | None Protector |
| LED Power Indicator | Yes (Green) |
| LED Action Indicator | Yes (Red) |
| Types of Bottom Shield | DIN-Rail Mounting |
| Specifications | |
| Performance | |
| Rated Voltage | DC 24V |
| Rated Current (mA) | 21.8 mA |
| Total Current (mA) | 348.8 mA |
| Coil Resistance (Ω) | 1,100 Ω |
| Operate Voltage | below 70% |
| Release Voltage | more than 15% |
| Max. Voltage (V) | 170% (at 23℃) |
| Power Consumption (VA, W) | about 8.48 W |
| Resistive Load | AC - 250V : 16A / DC - 30V : 16A |
| Inductive Load | AC - 250V : 8A / DC - 30V : 8A |
| Max. Contact Voltage | AC – 380V / DC – 125V |
| Max. Contact Current | 16A |
| Operating Time | below 15 ms |
| Release Time | AC: below 15 ms / DC :below 5 ms |
| Mechanical Operating Life | AC : More than 10,000,000 times (operating frequency : 18,000 operations/hr) DC : More than 20,000,000 times (operating frequency : 18,000 operations/hr) |
| Electrical Operating Life | More than 100,000 times (under rated load, operating frequency 1,800 operations/hr) |
| Insulation Resistance | more than 1,000 MΩ |
| Withstand Voltage (Between Coil and Contact) | AC 5,000V 50 / 60 Hz 1 min |
| Withstand Voltage ((Between Contact and Contact)) | AC 1,000V 50 / 60 Hz 1 min |
| Withstand Voltage (Between Different Polarity) | AC 3,000V 50 / 60 Hz 1 min |
| Vibration Resistance (Durability) | 10~55~10Hz single amplitude 0.75mm (1.5mm double amplitude) |
| Vibration Resistance (Misoperation) | 10~55~10Hz single amplitude 0.75mm (1.5mm double amplitude) |
| Shock Eesistance (Durability) | 1,000m/s 2 |
| Shock Eesistance (Misoperation) | NO COM : 200m/s2 NC COM : 100m/s2 |
| Material Information | |
| Material of Contacts | Ag alloy (NO Cd ) |
| Weight (g) | about 1047.4g |
| Commerical Data | |
| H.S. Code | 8536.41.00.00-8 |
| Place of Origin | Taiwan (R.O.C) |
| Ambient Operating Condition | |
| Ambient Operating Temperature | -25~+70℃ (with no icing or condensation) |
| Ambient Operating Humidity | 5~85% RH |
| Installation | |
| Relays | Pluggable |
| Modules | DIN-35mm Standard guide rail installation |
| Plug-in | Comes with relay fixing hook |
| Certifications | |
| International Certification | CE、FCC、RoHS、UL/CSA、PMC、TÜVNORD |
