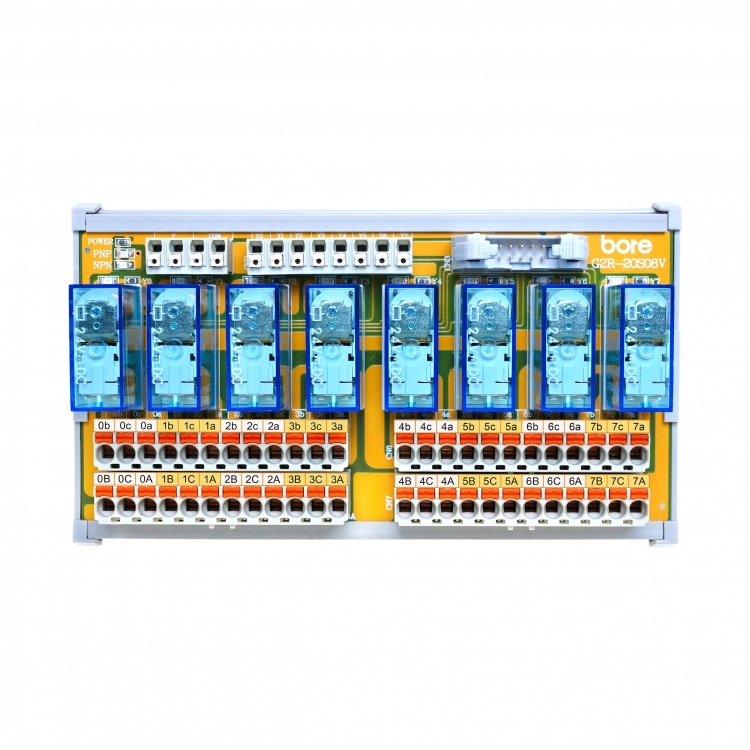

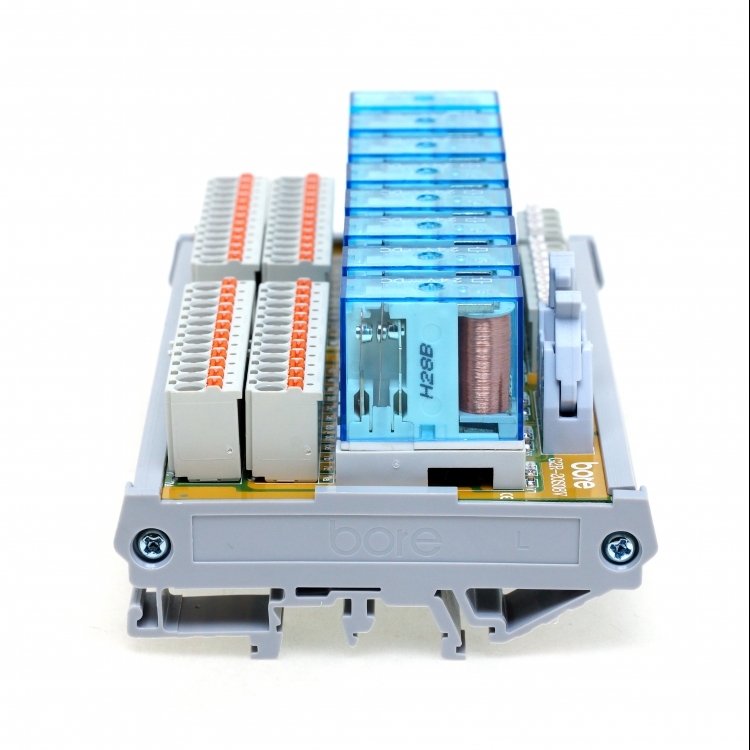

FINDER RELAY
G2R-2OS08V-FD
- 2c contact (DPDT)
- 8-point relay module
- Adopts WAGO 5.0mm European standard straight-in spring-type terminal block
- Using FINDER 44.52.7.024.0000 relay
- Using IDC/MIL connector (10PIN)
- Corresponds to PLC brand "universal model"
- Please contact the sales window for 3D files
PLEASE SELECT PRODUCT ITEM NO.
| Specification | Data |
|---|---|
| Product Name | 8-point relay module G2R-2OS08V-FD |
| Dimensions | L148 x W86 x H62 mm |
| Numbers of Channel | 8 |
| Types of Relay | Power relay |
| Brands of Relay | FINDER |
| Item No. of Relay | 44.52.7.024.0000 |
| Contact Type | 2c ( DPDT ) |
| Types of Connector | IDC/MIL connector (10PIN) |
| Brands of Terminal Block | WAGO |
| Types of Terminal Block | 5.0mm European standard straight-in spring-type terminal block |
| Correspondence with PLC/CNC Brands | Universal model |
| Contact Protection | No protection function |
| LED Power Indicator | green light |
| LED Action Indicator | red light |
| Coil Resistance (Ω) | 1,200 Ω |
| Rated Input Voltage (V) | DC-24V |
| Rated Input Current | 160 mA |
| Power Consumption (VA, W) | 4.3W |
| Current Consumption (A) | 0.18A |
| Max. Contact Current | 10A |
| Max. Contact Voltage | AC - 400V |
| Contact Rated Load | AC1 - 1,500VA；AC15 ( AC - 230V ) - 250VA |
| Withstand Voltage (Between Coil and Contact) | 6 ( 8mm ) ( 1.2/50μs ) kV |
| Mechanical Operating Life | 20 million times |
| Electrical Operating Life | 150,000 times (rated load AC1) |
| Types of Voltage | DC 24V |
| Types of Bottom Shield | lock aluminum rail |
