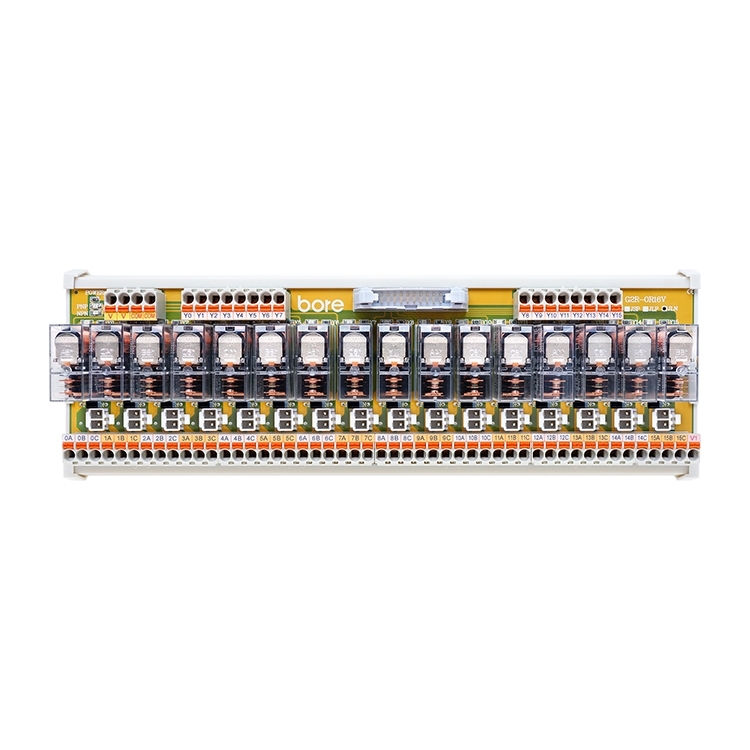

OMRON RELAY
G2R-OR16V-JLN
- 24VDC 16-Point OMRON Relay Module
- Uses WAGO 5.0mm Euro-style push-in spring terminals for easy wiring
- Universal type, compatible with various PLC controller brands
- Supports both NPN and PNP
- Pluggable relays for easy replacement and maintenance
- DIN-35mm rail mounting design
- Built-in LED indicators for power and operation status
- For 3D files, please contact the sales representative
PLEASE SELECT PRODUCT ITEM NO.
- Both control and controlled sides use the latest push-in terminal wiring design for simplified and convenient wiring
- Uses original OMRON relays with gold-plated bases for anti-oxidation, better conductivity, and long lifespan
- Each relay is independent and pluggable, with a base compatible with other brands for easy replacement and maintenance
- Superior safety design with dielectric strength up to 5000V between coil and contacts, and 10000V surge resistance
- Built-in N-type fast recovery diode for contact protection
- Fast bidirectional connection between PLC and relay module, saving time, effort, and wiring
- Uses OMRON G2R-1-E-DC24 relays with large contact capacity, supporting up to 16A current
- Built-in bridging component for contact protection, with short-circuit bars to simplify coil wiring
- Industrial-grade design with strong anti-interference and high future scalability
- Quick installation on standard 35mm DIN rail
- Widely used in major manufacturing industries, machine tools, mechanical engineering, and industrial automation
| Specification | Data |
|---|---|
| Specifications | |
| Types of Relay | Power relay |
| Product Name | 16 Channels OMRON Relay Module |
| Correspondence with PLC/CNC Brands | 通用款 |
| Subtable Purpose | control device output |
| Polarity | NPN / PNP |
| Numbers of Channel | 16 |

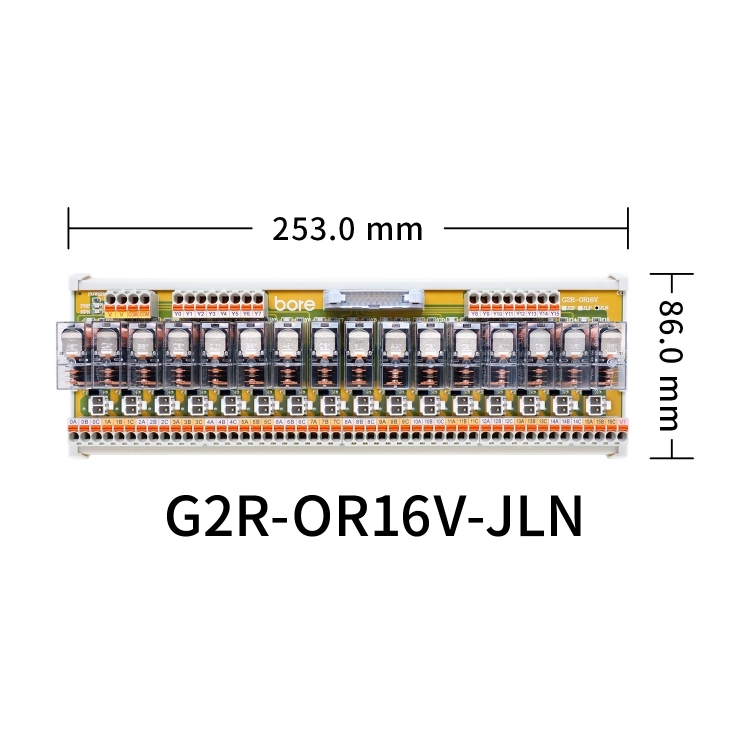

| Dimensions | L253.0 X W86.0 X H62.0 mm |
| Brands of Relay | OMRON |
| Item No. of Relay | G2R-1-E-DC24 |
| Contact Type | 1c (SPDT) |
| Poles | 1 pole |
| Functions of Relay | high-capacity |
| Protection of Relay | lead-free solderable |
| Brands of Terminal Block | WAGO |
| Types of Terminal Block | 5.0mm Push-in Terminal Block |
| Applicable Wire Diameter | 12~28 AWG |
| Types of Connector | 20-PIN IDC/MIL Connector |
| Contact Protection | Jumper Wire (JP)、N polar fast recovery diode (COM contact of load is +) (LN) |
| LED Power Indicator | Yes (Green) |
| LED Action Indicator | Yes (Red) |
| Types of Bottom Shield | DIN-Rail Mounting |
| Specifications | |
| Performance | |
| Rated Voltage | DC 24V |
| Rated Current (mA) | 21.8 mA |
| Total Current (mA) | 348.8 mA |
| Coil Resistance (Ω) | 1,100 Ω |
| Operate Voltage | below 70% |
| Release Voltage | more than 15% |
| Max. Voltage (V) | 170% (at 23℃) |
| Power Consumption (VA, W) | about 8.48 W |
| Resistive Load | AC - 250V : 16A / DC - 30V : 16A |
| Inductive Load | AC - 250V : 8A / DC - 30V : 8A |
| Max. Contact Voltage | AC – 380V / DC – 125V |
| Max. Contact Current | 16A |
| Operating Time | below 15 ms |
| Release Time | AC: below 15 ms / DC :below 5 ms |
| Mechanical Operating Life | AC : More than 10,000,000 times (operating frequency : 18,000 operations/hr) DC : More than 20,000,000 times (operating frequency : 18,000 operations/hr) |
| Electrical Operating Life | More than 100,000 times (under rated load, operating frequency 1,800 operations/hr) |
| Insulation Resistance | more than 1,000 MΩ |
| Withstand Voltage (Between Coil and Contact) | AC 5,000V 50 / 60 Hz 1 min |
| Withstand Voltage ((Between Contact and Contact)) | AC 1,000V 50 / 60 Hz 1 min |
| Withstand Voltage (Between Different Polarity) | AC 3,000V 50 / 60 Hz 1 min |
| Vibration Resistance (Durability) | 10~55~10Hz single amplitude 0.75mm (1.5mm double amplitude) |
| Vibration Resistance (Misoperation) | 10~55~10Hz single amplitude 0.75mm (1.5mm double amplitude) |
| Shock Eesistance (Durability) | 1,000m/s 2 |
| Shock Eesistance (Misoperation) | NO COM : 200m/s2 NC COM : 100m/s2 |
| Material Information | |
| Material of Contacts | Ag alloy (NO Cd ) |
| Weight (g) | about 595g |
| Commerical Data | |
| H.S. Code | 8536.41.00.00-8 |
| Place of Origin | Taiwan (R.O.C) |
| Ambient Operating Condition | |
| Ambient Operating Temperature | -25~+70℃ (with no icing or condensation) |
| Ambient Operating Humidity | 5~85% RH |
| Installation | |
| Relays | Pluggable |
| Modules | DIN-35mm Standard guide rail installation |
| Plug-in | Comes with relay fixing hook |
| Certifications | |
| International Certification | CE、FCC、RoHS、UL/CSA、PMC、TÜVNORD |
