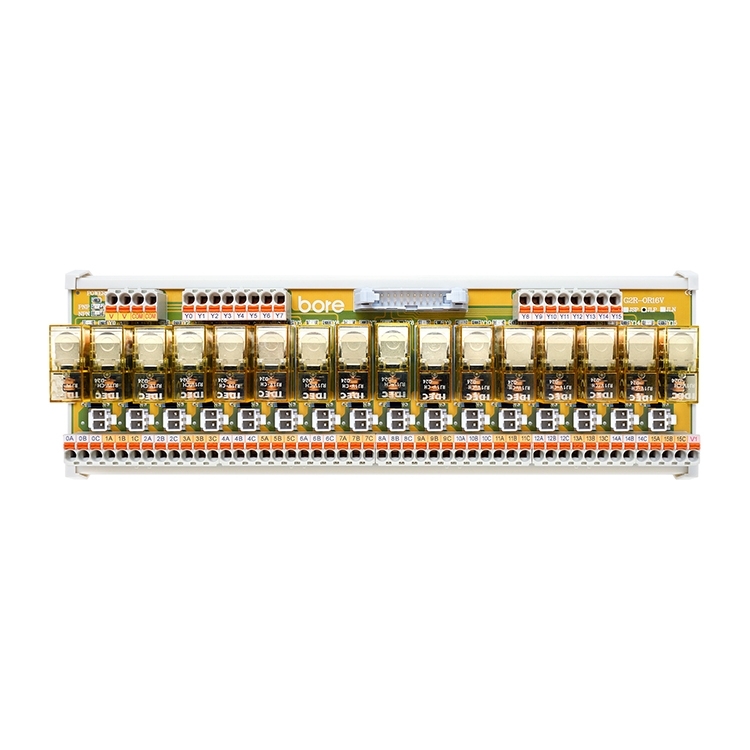

IDEC RELAY
G2R-OR16V-JLP-ID
- 24VDC 16-point Omron Relay Module
- Uses WAGO 5.0mm push-in spring terminal for easy wiring
- Universal model, compatible with various PLC controller brands on the market
- Compatible with both NPN and PNP
- Pluggable relay, easy to replace and maintain
- DIN-35mm rail mounting design
- Built-in LED power and action indicators
- For 3D files, please contact the sales representative
PLEASE SELECT PRODUCT ITEM NO.
- Both control and controlled ends adopt the latest push-in terminal wiring design, simplifying wiring for easy use
- Uses original Omron relays with gold-plated bases for better anti-oxidation, higher conductivity, and longer lifespan
- Pluggable relays with independent channels, each with a base, compatible with relays from other brands for easy replacement and maintenance
- Excellent safety design with a dielectric strength of 5000V between coil and contacts, and 10000V surge protection
- Used for IO expansion of input and output contacts in industrial control, connects with PLC to expand PLC's input and output ports
- Bidirectional fast connection between PLC and relay module for time-saving, labor-saving, and easier wiring
- Uses Omron RJ1V-CH-D24 relays with high current capacity, up to 16A per contact
- Built-in fast recovery diode protection device for contacts
- Built-in jumper component contact protection device, simplifying coil terminal wiring with short-circuit bars
- Industrial-grade design, anti-interference, and future expandability
- Can be quickly installed on standard 35mm rail
- Widely used in manufacturing industries, machine tools, machinery industries, and industrial automation fields
- User-friendly interface design, all interfaces can be directly connected via wiring terminals, very convenient
| Specification | Data |
|---|---|
| Specifications | |
| Types of Relay | 功率繼電器 |
| Product Name | 16點 IDEC 繼電器模組 |
| Correspondence with PLC/CNC Brands | 通用款 |
| Subtable Purpose | 控制設備輸出用 |
| Polarity | NPN / PNP 兼容 |
| Numbers of Channel | 16 |

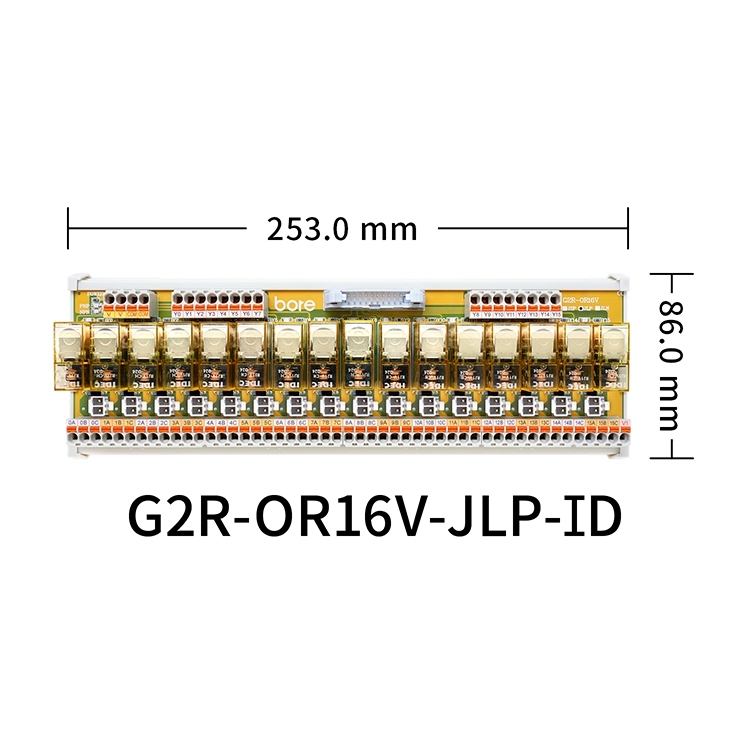

| Dimensions | L253.0 X W86.0 H62.0 mm |
| Brands of Relay | IDEC |
| Item No. of Relay | RJ1V-CH-D24 |
| Contact Type | 1c (SPDT) |
| Poles | 1 pole |
| Functions of Relay | 高容量型 |
| Protection of Relay | 耐助焊劑型 |
| Brands of Terminal Block | WAGO |
| Types of Terminal Block | 5.0mm 直插彈片式端子台 |
| Applicable Wire Diameter | 12~28 AWG |
| Types of Connector | 20-PIN IDC 牛角連接器 |
| Contact Protection | 跨接元件 (JP)、P 極性快速恢復二極體 (LP) |
| LED Power Indicator | 有 (綠色) |
| LED Action Indicator | 有 (紅色) |
| Types of Bottom Shield | 鎖鋁軌 |
| Specifications | |
| Performance | |
| Rated Voltage | DC 24V |
| Rated Current (mA) | 22.1 mA |
| Total Current (mA) | 353.6 mA |
| Insulation Resistance (Ω) | 1,080 Ω |
| Operate Voltage | 70% 以下 |
| Release Voltage | 10% 以上 |
| Max. Voltage (V) | 170％(at 20℃) |
| Resistive Load | AC - 250V : 16A / DC - 30V : 16A |
| Inductive Load | AC - 250V : 8A / DC - 30V : 8A |
| Max. Contact Voltage | AC – 250V / DC – 125V |
| Max. Contact Current | 16A |
| Operating Time | 15ms 以下 |
| Release Time | 10ms 以下 |
| Withstand Voltage (Between Coil and Contact) | 5,000V AC · 1 分鐘 |
| Withstand Voltage ((Between Contact and Contact)) | 1,000V AC · 1 分鐘 |
| Withstand Voltage (Between Different Polarity) | - |
| Vibration Resistance (Durability) | 10~55Hz 單振幅0.75mm |
| Vibration Resistance (Misoperation) | 10 ∼ 55Hz 單振幅0.75mm |
| Shock Eesistance (Durability) | 1,000m/s2 |
| Shock Eesistance (Misoperation) | NO 接點 : 200m/s2 NC 接點 : 100m/s2 |
| Material Information | |
| Material of Contacts | 銀錫銦 |
| Weight (g) | 約 595g |
| Commerical Data | |
| H.S. Code | 8536.41.00.00-8 |
| Place of Origin | Taiwan (R.O.C) |
| Ambient Operating Condition | |
| Ambient Operating Temperature | -40~+70ºC （無結冰） |
| Ambient Operating Humidity | 5~85％ RH （無結露） |
| Installation | |
| Relays | 插拔式 |
| Modules | DIN-35mm 標準導軌式安裝 |
| Plug-in | 附繼電器固定鈎 |
| Certifications | |
| International Certification | CE、FCC、RoHS |
