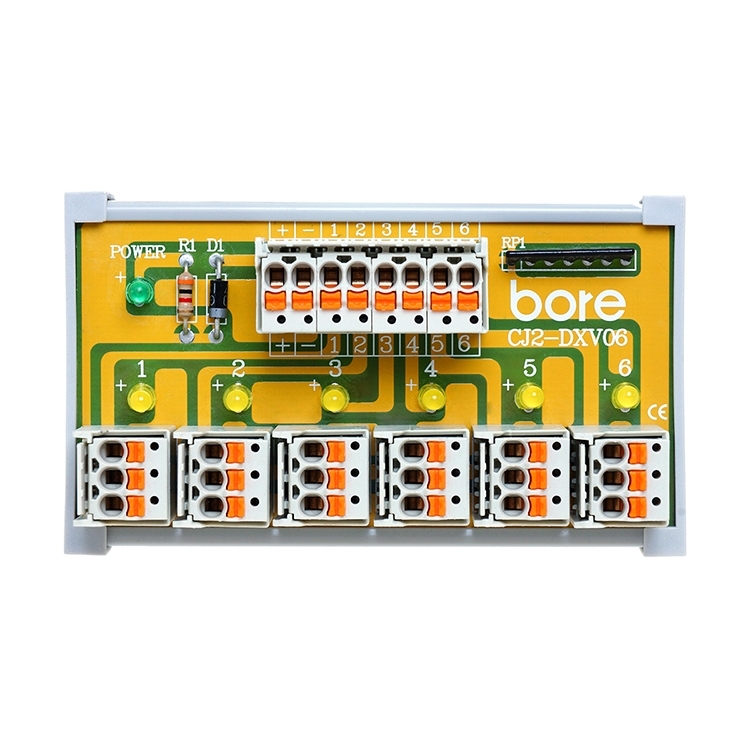

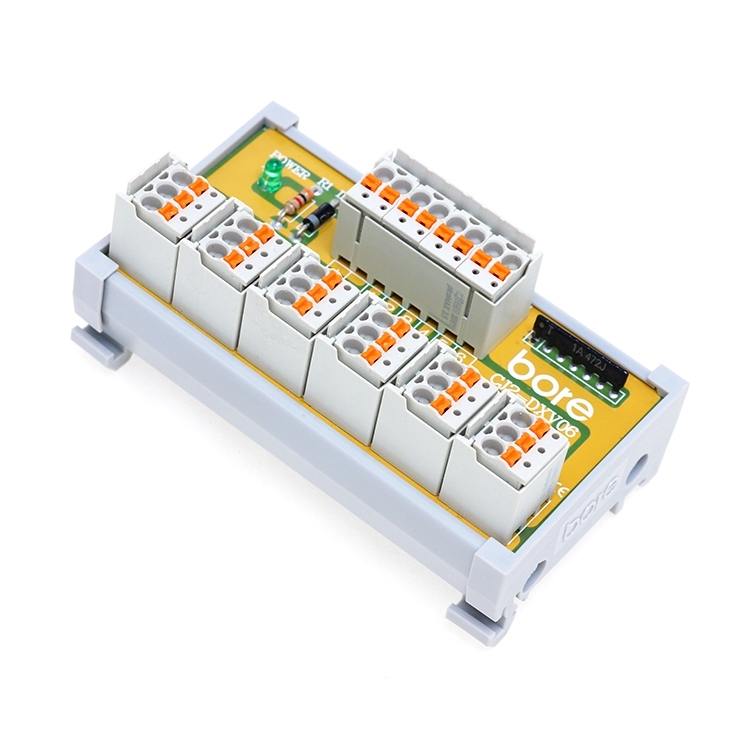

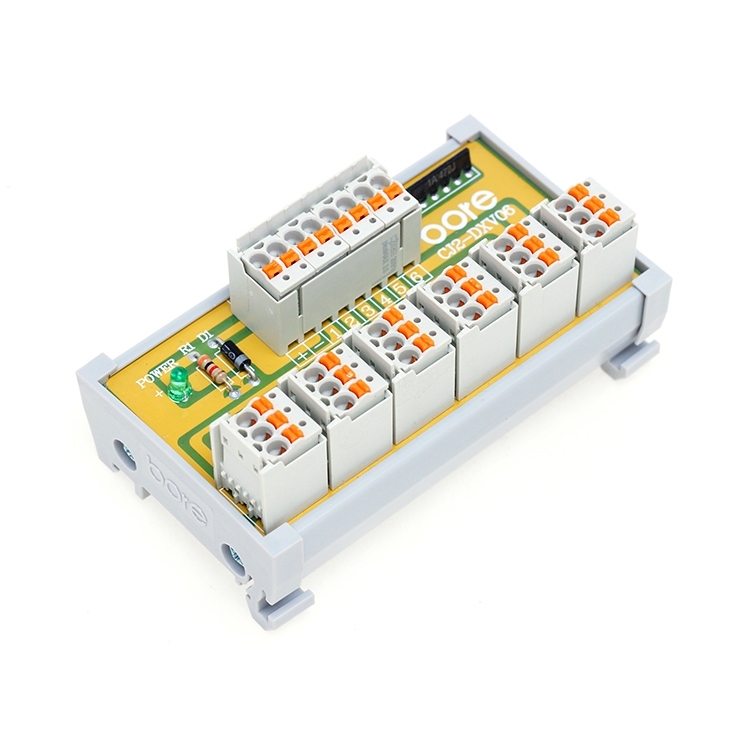

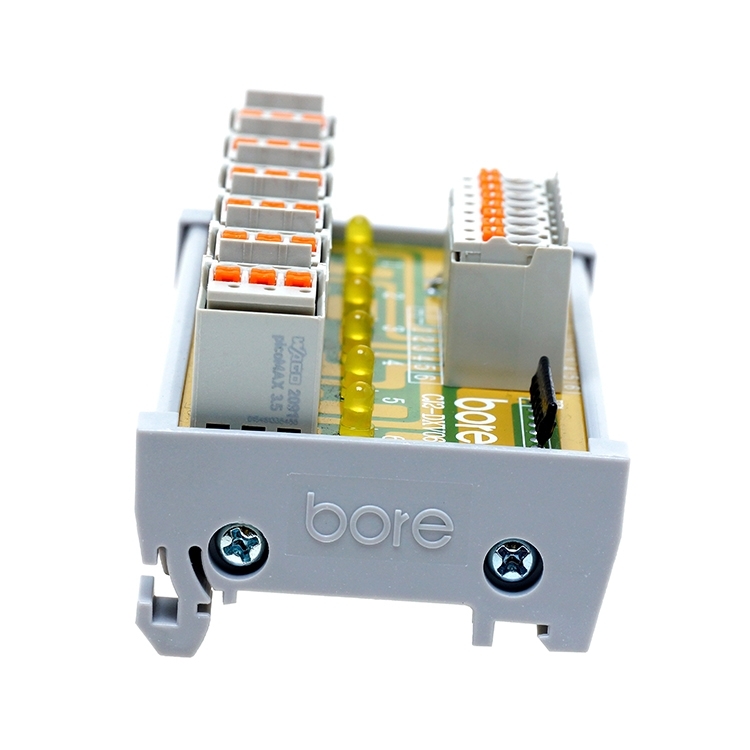

3.5mm Push-in Terminal Block

CJ7-DXVIC06

6P Sensor Relay Module with Indicator
Adopts WAGO 3.5mm push-in spring terminal block (with base) for easy wiring
Easy wiring, convenient expansion, fast connection of I/O signals between panel, device, and controller
Module enables convenient integration back to PLC
Suitable for various types of sensors
Ideal for all kinds of industrial automation equipment
For 3D files, please contact your sales representative

PLEASE SELECT PRODUCT ITEM NO.

Add to Inquiry

Datasheet (Download)

Signal relay module designed specifically for sensors
Uses WAGO 3.5mm push-in spring terminal block (with base), suitable for wiring in narrow spaces
Equipped with LED indicator lights, each signal comes with an LED status display for clear visibility, making wiring tasks easier
Mountable on standard 35mm DIN rail
Provides safe and maintainable connections for flexible signal wiring applications
Sensor relay module designed for various PLC/CNC brands, offering flexible expansion, compatibility, compact size, and space-saving

Specification	Data
Specifications
Product Name	6P 感測器中繼模組
No. of Poles	6P (poles)
Subtable Purpose	適用於感測器與PLC中繼訊號轉版，連接器與端子台做對應
LED Indicator	有

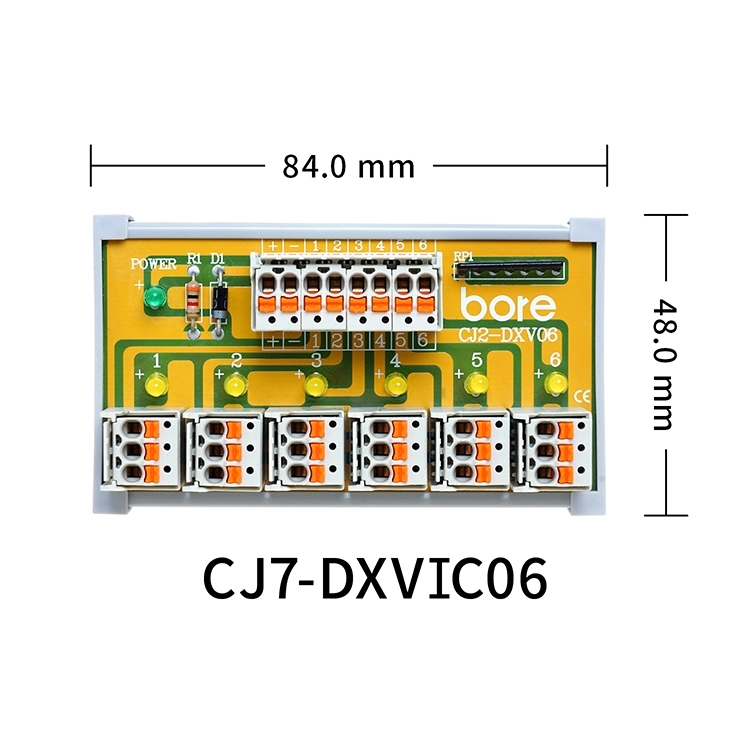

Dimensions	L84.0 X W48.0 X H42.4 mm
Brands of Terminal Block	WAGO
Types of Terminal Block	3.5mm 直插彈片式端子台(含底座)
Types of Connector	無
Contact Protection	無
Types of Bottom Shield	鎖鋁軌
Specifications
Performance
Rated Voltage	AC - 125V ~ DC - 30V
Rated Current (mA)	8A
Withstand Voltage	AC - 500V 1分鐘
Insulation Resistance (Ω)	100 MΩ 以上
Applicable Wire Diameter	14~28 AWG
Material Information
Materials of Module	塑膠本體、 PCB板 (FR-4 玻璃纖維)
Weight (g)	約 45.3g
Commerical Data
H.S. Code	8517.62.00.00-5
Place of Origin	Taiwan (R.O.C)
Installation
Connector	一對一連接 (連接器與端子台對接)
Modules	DIN-35mm 標準導軌式安裝
Certifications
International Certification	CE、FCC、RoHS
